- Ducted / Decorative Type Fan Coil Units
- 42MEL/MEH Standard cooling application
- 42MELD/MEHD District cooling
- Low unit height suitable for low false ceiling application
- 42MEL Low Static Series available up to 275mm height.
- 42MEH High Static Series available up to 375mm height.
- Standard galvanized sheet metal casing
- 3-speed high efficiency AC motor with class B insulation
- 12 mm thickness internal insulation with 32 kg/m^3 density
- Insulated polyester powder coated galvanized drain pan
- Threaded connections for easy installation and maintenance
- Low noise level suitable for all application
- Easy wiring, piping connections

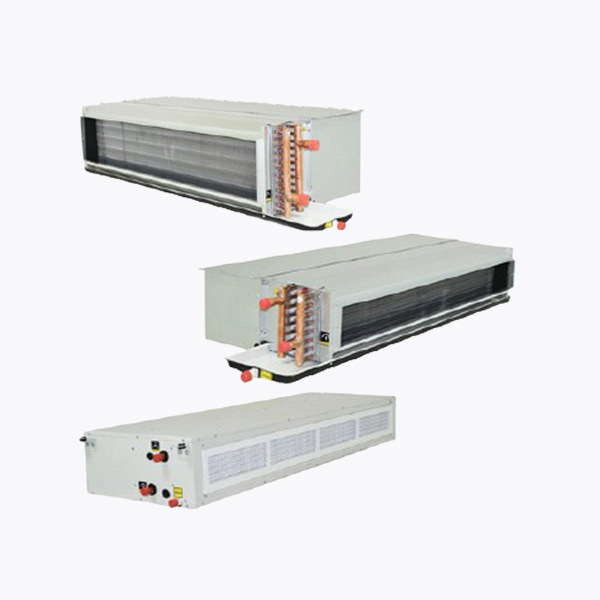

42ME SERIES
$0.00
Chilled Water Fan Coil Units for
Chiller [STANDARD ΔT] and district
cooling application
(200 to 3000 CFM) – 50Hz

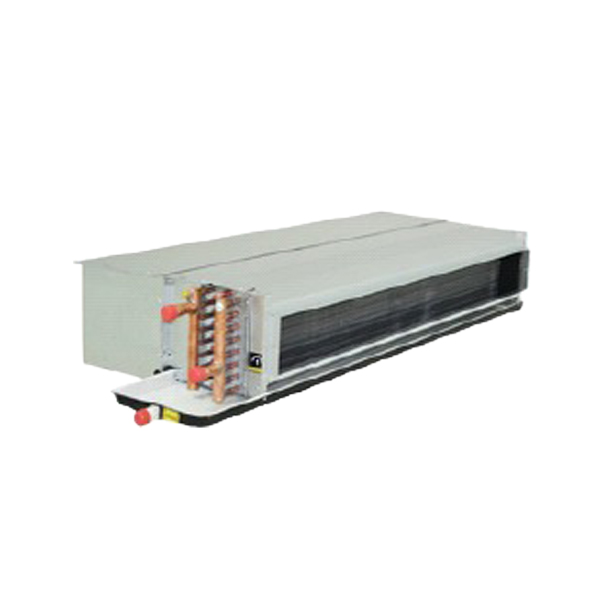

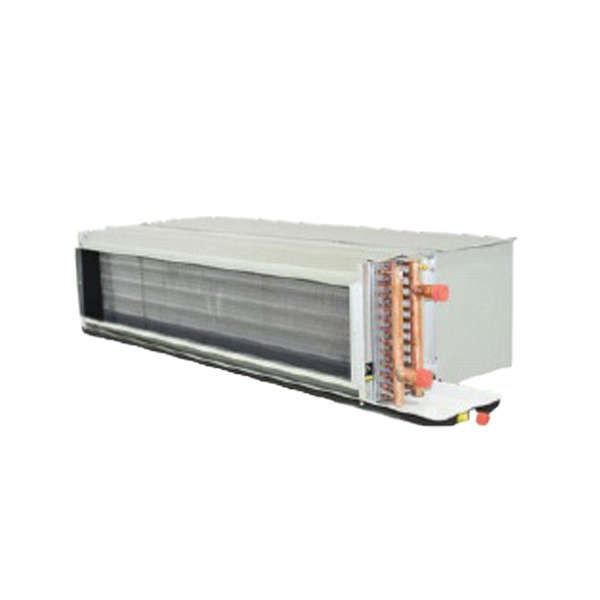

MEHD Series (Ducted)
- Cooling Capacity 3.00 TR – 7.5 TR
- Air flow 1000-3000 cfm
- Manufactured in UAE
- Low height units, easy installation & low maintenance
- High Static pressure Units
MELD Series (Ducted)
- Cooling Capacity 0.5 TR – 2.5 TR
- Air flow 200-1000 cfm
- Manufactured in UAE
- Low height units, easy installation & low maintenance
- Low Static pressure Units

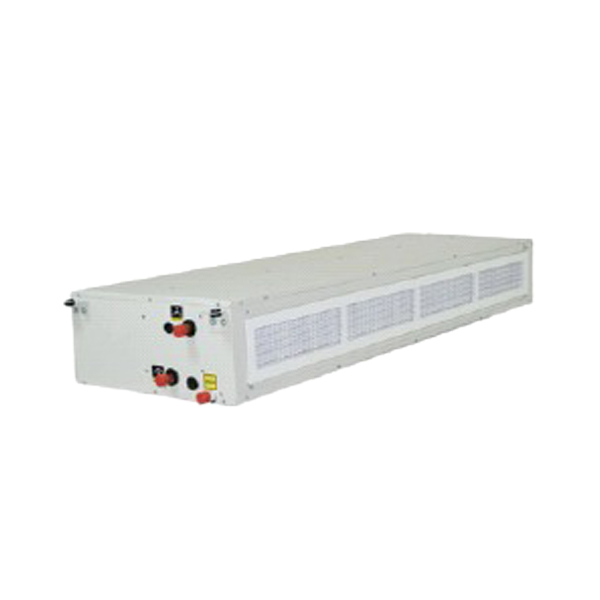

MELDE/MEHDE Series (Decorative)
- Cooling Capacity 0.5 TR – 7.5 TR
- Air flow 200-3000 cfm
- Manufactured in UAE
- Decorative Ceiling Suspended units
FCU available with EC Motor/ Double Skin options based on requirement.
FCU are suitable for both Chiller & District Cooling applications.
