Performance Features

• Eurovent energy efficiency class “A”
• Eurovent certified values per EN14511-3:2013: EER up to 5.5 and ESEER up to 8.0
• GROSS EER up to 5.8 kW/kW and ESEER up to 9.5 kW/Kw
• Non-ozone depleting chlorine-free refrigerant HFC-134a
• Low energy consumption during part load and full load operation
• Leaving-fluid temperature directly controlled to within 0.5°F (0.3°C)
• As standard, the unit can provide an evaporator leaving water temperature down to 3.3°C.
• Entering-fluid temperature continuously monitored to detect flow or load changes
• ASHRAE 90.1 compliant
• Heat recovery capability up to 140°F (60°C)
• Good life-cycle cost with short payback time

Product Features

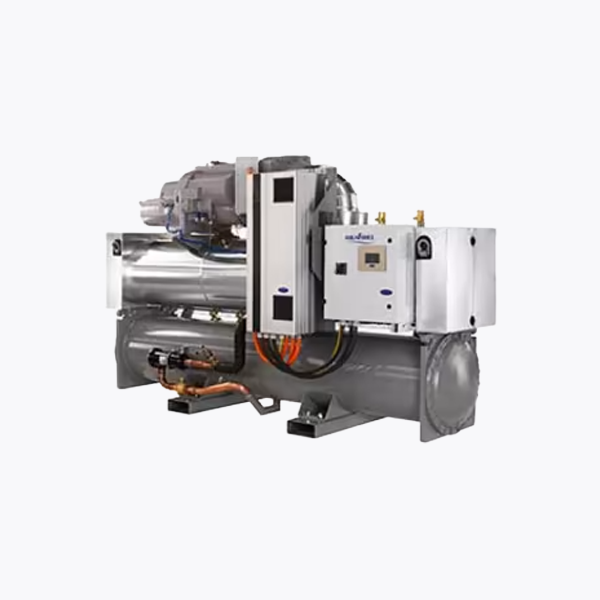

• Inverter-driven twin-rotor screw compressors with Greenspeed™ Technology which allow precise capacity matching of building load changes and significantly with high full load and part load efficiency.
• Compressor capacity adjustment by varying the motor speed that permits exact matching of the cooling capacity to the load.
• New colorful screen and new generation Touch Pilot Control system
• Flooded multi-pipe evaporator and condenser for increased heat exchange efficiency.
• Electronic expansion valve ensures high control precision.
• Inverter-driven motors ensure negligible start-up current, optimized electrical performance.
• Industrial-type screw compressors with oversized bearings and motor cooled by suction gas.
• Reduced number of moving parts, with compressor rotors directly driven by the motor, to lower the failure rate
• Electronic paddle-free flow switch. Auto-setting according to cooler size and fluid type
• Automatic compressor unloading in case of abnormally high condensing pressure or discharge temperature
• Low voltage control circuits
• Short cycle protection
• Connect to the PC using a web browser with Java,to connect to the Touch Pilot control enter the IP address of the unit in the address bar of the web browser
• Compatible with Carrier Comfort Network® (CCN) communication link
• Offers industrial and commercial customers a best-in-class solution for hotels and office buildings , underground railway systems, as well as retrofit projects

Maintenance Features

• Hermetic twin screw compressors
• Mechanically cleanable condenser and evaporator
• Alarm contacts
• Filter drier
• Service contract available

Installation Features

• With a relatively small width, only require minimum floor space in the plant room.
• Victaulic connections on the evaporator and condenser, easy and fast installation
• Possibility to reverse the heat exchanger water inlet and outlet at the factory
• Simplified electrical connections, main disconnect switch with high trip capacity and transformer supply to the integrated control circuit (400/24 V)
• Fast commissioning, systematic factory operation test before shipment

Standard Warranty

• One year from start-up or 18 months from shipment
